Product Overview

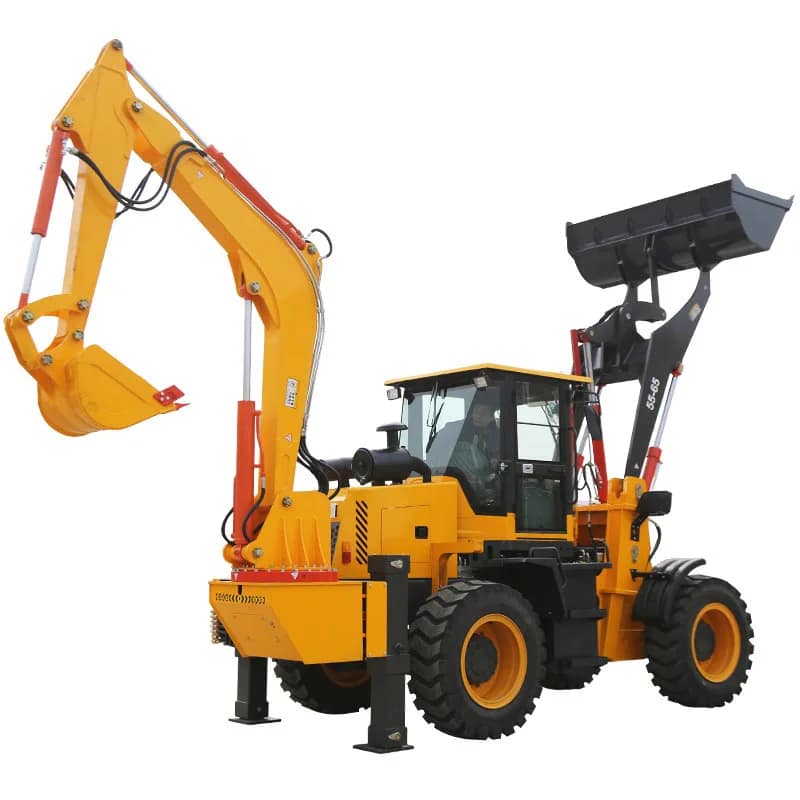

LUYRN Original Factory Backhoe Loader is a cost-effective, full-featured dual-purpose machine engineered for small construction contractors, farmers, and municipal maintenance crews. Featuring a robust front loader bucket and a rear-mounted excavator arm with 360° swing, this machine eliminates the need for two separate machines on site. Available in multiple power configurations from 22 kW to 85 kW to match any workload requirement.
Key Features
- Factory-direct LUYRN quality — no middleman markup
- Dual-function: front loader + rear backhoe with 360° swing
- Multiple engine options: Laidong, Yunnei, Yuchai (China II compliant)
- Heavy-duty welded frame with reinforced boom/arm joints
- 4-wheel drive with locking differentials
- Hydraulic outriggers / stabilizer legs for digging stability
- Pilot joystick controls (optional) for reduced operator fatigue
- Compatible with 20+ optional attachments
Available Models
| Model | Engine | Power | Notes |
|---|---|---|---|
| FS30-15 | Laidong China II | 22.1 kW | Compact entry model |
| FS30-20 | Yunnei China II | 55 kW | Standard configuration |
| FS40-25 | Yunnei China II | 76 kW | Mid-range |
| FS40-35 | Yunnei China II | 76 kW | Extended reach |
| FS40-35L | Yunnei China II | 76 kW | Long-reach version |
| FS40-35H | Yunnei China II | 76 kW | High-config version |
| FS45-35 | Yuchai China II | 85 kW | Heavy-duty |
| FS45-35L | Yuchai China II | 85 kW | Heavy-duty long-reach |
Technical Specifications — FS40-25 (Representative)
| Parameter | Value |
|---|---|
| Model | FS40-25 |
| Engine | Yunnei China II |
| Rated Power | 76 kW |
| Drive | 4WD with diff. lock |
| Transmission | 8F / 8R synchronized |
| Front Bucket | 1.0 m³ |
| Rear Bucket | 0.22 m³ |
| Max Digging Depth | 4,350 mm |
| Max Digging Height | 5,800 mm |
| Hydraulic Pressure | 18 MPa |
| Travel Speed | Up to 36 km/h |
| Fuel Tank | 90 L |
Optional Configurations
- Weichai or Cummins engine upgrade
- 4-in-1 combination bucket
- Extendable / telescopic boom
- Enclosed ROPS cab with HVAC
- Hydraulic breaker hammer (68-type)
- Spiral auger / post-hole drill
- Log grapple / rotating grapple
- Snow blower / snow push blade
- Vertical stabilizer legs
- Pilot-operated hydraulic controls
Applications
The LUYRN backhoe loader excels in rural road repair, farm pond excavation, fence post digging, water & gas line trenching, foundation work, gravel stockpiling, snow removal, and general-purpose material handling. Its road-speed capability allows operators to drive directly between multiple job sites in a single day.
