Product Overview

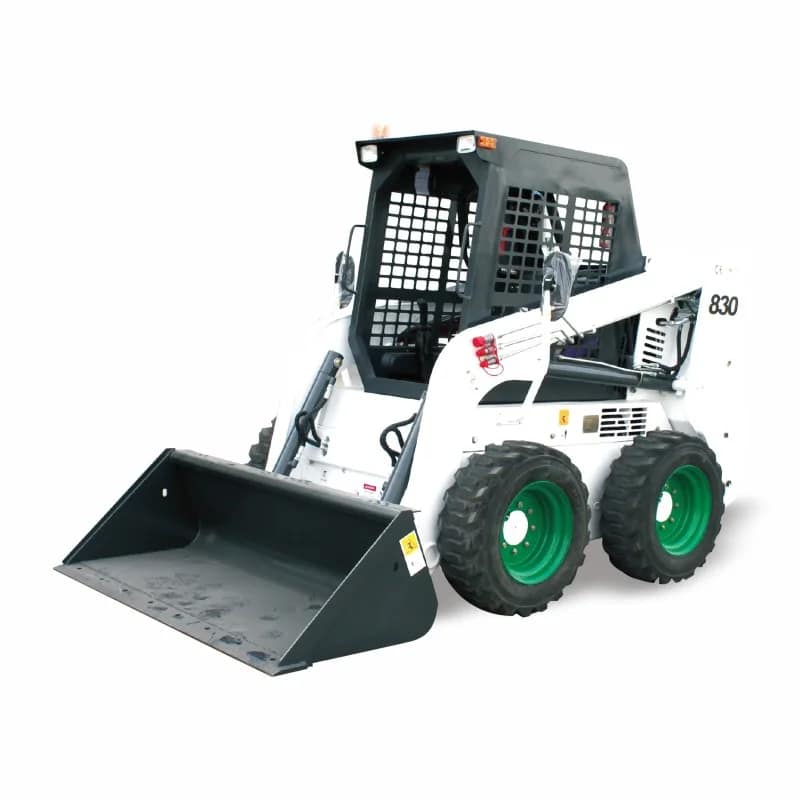

LUYRN HL-series Skid Steer Loaders are compact, multi-functional loading machines available in both wheeled and tracked configurations. With rated capacities from 600 kg to 1,050 kg and power from 18.2 to 55 kW, these loaders feature universal quick-attach plates compatible with dozens of attachments. The compact footprint and zero-radius turning capability make them indispensable on congested job sites, farms, and industrial facilities.
Key Features
- Universal quick-attach system — compatible with 100+ attachments
- Zero-radius turning for maximum maneuverability in tight spaces
- High-flow auxiliary hydraulics for powered attachments
- ROPS/FOPS-certified operator station with joystick controls
- Wheeled models: fast, agile on hard surfaces
- Tracked models: superior traction and flotation on soft ground
- Heavy-duty lift arm with parallelogram or vertical-lift path
- Easy side-access service doors for daily maintenance
Large Skid Steer Models
| Model | Type | Rated Load (kg) | Power (kW) | Engine | Weight (kg) |
|---|
| HL45 | Wheeled | 700 | 36.7 | Xinchai C490BPG | 2,700 |
| HL50 | Tracked | 700 | 45 | Xinchai A498BPG | 2,800 |
| HL65 | Wheeled | 1,050 | 55 | Xinchai A498BGZ | 3,298 |
| HL65T | Tracked | 1,000 | 55 | Xinchai A498BGZ | 3,800 |
Compact Skid Steer Models
| Model | Rated Load (kg) | Engine | Power | Weight (kg) |
|---|
| HL1000 | 600 | Kubota D1105 | 18.2 kW | 1,300 |
| HL1000 (Xinchai) | 600 | Xinchai 3B11X51 | 18.5 kW | 1,300 |
| HL1100 | 800 | Yanmar 3TNV88 | 18.2 kW | 1,400 |
| HL1500 | 1,000 | Yanmar 4TNV88 | 34.3 kW | 2,028 |
Technical Specifications — HL45 (Wheeled)
| Parameter | Value |
|---|
| Model | HL45 (Wheeled) |
| Operating Load | 700 kg |
| Engine | Xinchai C490BPG |
| Rated Power | 36.7 kW |
| Max Speed | 10 km/h |
| Rated Hydraulic Flow | 80 L/min |
| Tire Model | 10-16.5 NHS |
| Fuel Tank | 70 L |
| Operating Weight | 2,700 kg (2,916 with bucket) |
| Bucket Capacity | 0.4 m³ |
| Overall Operating Height | 4,042 mm |
| Height to Hinge Pin | 3,079 mm |
| Overall Length (with bucket) | 3,276 mm |
| Dumping Height | 2,342 mm |
| Wheelbase | 991 mm |
| Ground Clearance | 185 mm |
| Overall Width | 1,726.5 mm |
Optional Configurations
- Bucket options: general-purpose, rock, light-material, snow bucket
- Fork carriage with pallet forks
- Hydraulic breaker / hammer
- Auger / earth drill
- Trencher attachment
- Sweeper / broom attachment
- Snow blower
- Grapple rake / log grapple
- Cold-weather package: cab enclosure, engine heater
- Alternative engines: Kubota, Yanmar, Xinchai
Applications
Versatile machines suited for construction site cleanup, material handling, snow removal, agriculture, landscaping, demolition, road maintenance, livestock farm management, and utility work. Tracked models excel on mud, sand, and slopes where wheeled machines would struggle.
